30T/D Rice Milling Production Line Introduction

This 30T/D rice mill plant is a popular using plant with a capacity of 30ton/day. It contains a rice destoner machine, rice huller machine, paddy rice separator machine, rice mill machine, and rice grader machine.  According to this capacity is higher, so all machines used are larger than the VMTCP-15, and for this set rice mill plant, it contains two sets of rice mill machines, one set emery roller, one set iron roller rice mill machine, two rice mill machines cooperate use, can promise to mill the white rice bright and white, with high standard.

Automatic working, high working efficiency, economical price, convenient to work. And all the rice mill production line details can be customized according to customers' needs, if you need the rice color sorter machine, the rice polisher machine, or even the rice package machine, we can set them up for you in the rice mill plant. And all our rice mill production lines, are set up with an operating panel to make the machine fully automatic work, very convenient, and save much labor and time.

This hot sale 30T/D paddy rice milling machine is professional in paddy rice processing, it can process different shapes of paddy rice such as long shape, round shapes, it also can process the parboiling paddy rice and paddy rice directly, with a low broken rate and high rice yielding.

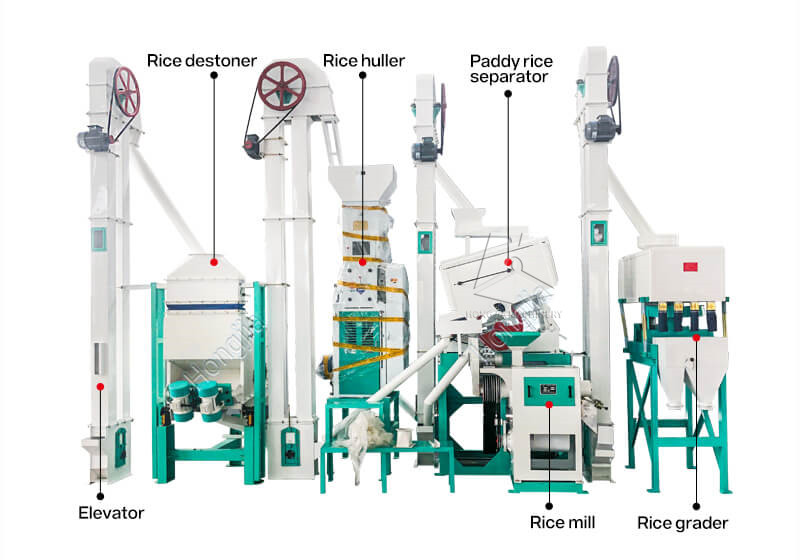

30T/D Rice Milling Production Line Structure

The feed hopper: used to feed the paddy rice into the destoner to keep other machines working. If to reduce the labor force, can use a grain suction machine.

Rice destoner: to remove the stone and impurity from paddy rice, which can guarantee the machine work safely.

Rice huller: remove the husk from paddy rice, then get brown rice. it is a rubber roller, which with low broken rice, and a high hulling rate.

Rice husk separator: to separate the brown rice hulled well from paddy rice not hulled. well-hulled brown rice into a rice mill machine. not hulled paddy rice can be returned to the rice huller for hulling once more.

Rice mill machine: sand rollers, to make the brown rice white. with a low broken rate, and a high yielding rate.

Rice grader machine: to separate the broken rice from the good rice. which makes the white rice have a good appearance.

30T/D Standard Rice Mill Plant Working Process

The 30T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.

30T/D Standard Rice Mill Plant Features

1. Rice milling speed is fast, the complete set of equipment has a daily output of about 30 tons;

2. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient;

3. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate;

4. Our processing technology: Optical fiber cutting, CNC bending, CNC machine tools, spraying process, high-position spray baking, etc;

5. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate;

6. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, has low vibration, low noise, and low dust;

7. Better cleaning effect can remove the impurities among the grains like stone, iron, dust, stalks, etc;
